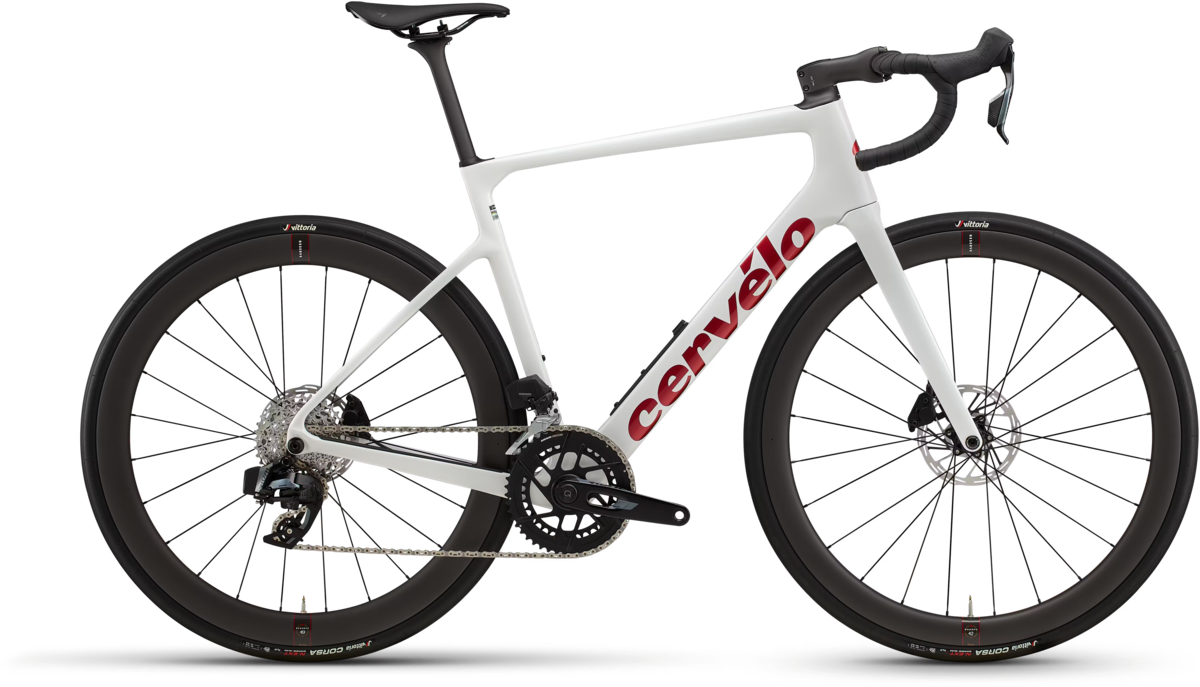

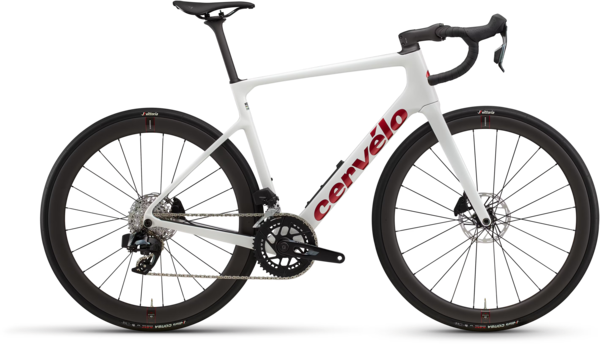

Cervelo Caledonia-5 Rival AXS - 2026
$7,200.00
Details
Caledonia doesn’t fit in a box nicely, and we like it that way. It was conceived on our Thursday night rides—routes that often play fast and loose with ‘road ride.’ Modern road riders are looking for bikes to handle long-distance, high pace, no limits, and offer maximum fun—the Caledonia delivers performance, comfort, and speed. Oh, and you can fit a 34mm tire in there. Or 31mm with fenders.
| Frame Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach | mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop | mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length | mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length | mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase | mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length | mm | 415 | 415 | 415 | 415 | 415 | 415 |
| Frame Size | Rider Height |
|---|---|
| 48 | 4'22"-5'3" |
| 51 | 5'3"-5'6" |
| 54 | 5'6"-5'9" |
| 56 | 5'8"-5'11" |
| 58 | 5'11"-6'2" |
| 61 | 6'2"-6'7" |
Specs
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
|---|---|
| Wheels |
Front: Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible Rear: Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible |
| Axles |
Front: Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length Rear: Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length |
| Tires | Vittoria Corsa N.EXT TLR G2.0 700x32c |
| Bottom Bracket | SRAM DUB, BBright |
| Crankset | SRAM Rival AXS E1, 48/35T, DUB |
| Shifters | SRAM Rival AXS E1 |
| Front Derailleur | SRAM Rival AXS E1 |
| Rear Derailleur | SRAM Rival AXS E1 |
| Cassette/Freewheel | SRAM Rival D1, 10-36T, 12-Speed |
| Chain | SRAM Rival E1 |
| Rotors | SRAM Paceline Centerlock |
| Handlebars | Cervélo AB07 Alloy, 31.8mm clamp |
| Stem | Cervélo ST36 Alloy |
| Seatpost | Cervélo SP19 Carbon 27.2 |
| Pedals | Sold Separately |
| Saddle | Cervélo Saddle |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Emerald/Cream / 48cm / 700c | 616663230007 | 0L0CFBVX1C48 | |
| Emerald/Cream / 51cm / 700c | 616663230014 | 0L0CFBVX1C51 | |
| Emerald/Cream / 54cm / 700c | 616663230021 | 0L0CFBVX1C54 | |
| Emerald/Cream / 56cm / 700c | 616663230038 | 0L0CFBVX1C56 | |
| Emerald/Cream / 58cm / 700c | 616663230045 | 0L0CFBVX1C58 | |
| Emerald/Cream / 61cm / 700c | 616663230052 | 0L0CFBVX1C61 | |
| Vanilla/Cherry / 48cm / 700c | 616663230069 | 0L0CFBVX2C48 | |
| Vanilla/Cherry / 51cm / 700c | 616663230076 | 0L0CFBVX2C51 | |
| Vanilla/Cherry / 54cm / 700c | 616663230083 | 0L0CFBVX2C54 | |
| Vanilla/Cherry / 56cm / 700c | 616663230090 | 0L0CFBVX2C56 | 210000063558 |
| Vanilla/Cherry / 58cm / 700c | 616663230106 | 0L0CFBVX2C58 | |
| Vanilla/Cherry / 61cm / 700c | 616663230113 | 0L0CFBVX2C61 |
